Big Time Confidence in a Small SUV
Comparing it to rivals like the Kia Soul and Nissan Kicks, the Trailblazer may not be the champion in terms of fuel efficiency or price, but it does take the lead in the infotainment department, sporting the largest touchscreen among the three. Interestingly, despite its compact size, the Trailblazer makes smart use of interior space by allowing the front-passenger seat to fold flat, giving room for long items.
New for 2024
A new 11.0-inch infotainment touchscreen takes main stage in the center console. It is paired with a sleek 8.0-inch digital gauge cluster and both come as standard equipment. This high-tech duo replaces the smaller screen that was present in the previous year's model. If you're eager to get your hands on this refreshed version, you won't have to wait long as they will begin to start hitting the Chandler area late 2023.
Model Details
Engine & Performance
In comparison to the older model's performance, the acceleration of the 1.3-liter all-wheel drive Trailblazer tested exhibited a 9.4-second time to reach 60 miles per hour, showcasing a similar pace to the older Trailblazer model. While the new Trailblazer provides improved efficiency and slightly increased horsepower, both old and new Trailblazers demonstrate similar acceleration times.
Interior & Cargo
Infotainment & Technology

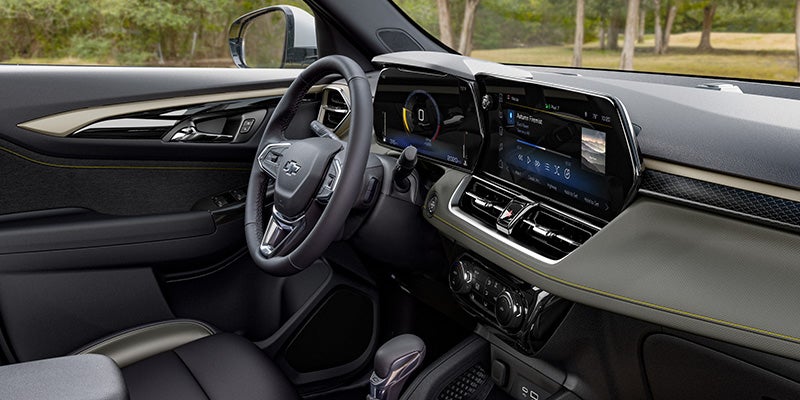

The Trailblazer features an 11.0-inch touchscreen infotainment system as standard. It's equipped with Apple CarPlay and Android Auto integration along with SiriusXM satellite radio. The LT, ACTIV, and RS trims offer wireless phone charging, and the available Wi-Fi hotspot allows passengers to stay connected for all their streaming requirements.
Trailblazer Trims

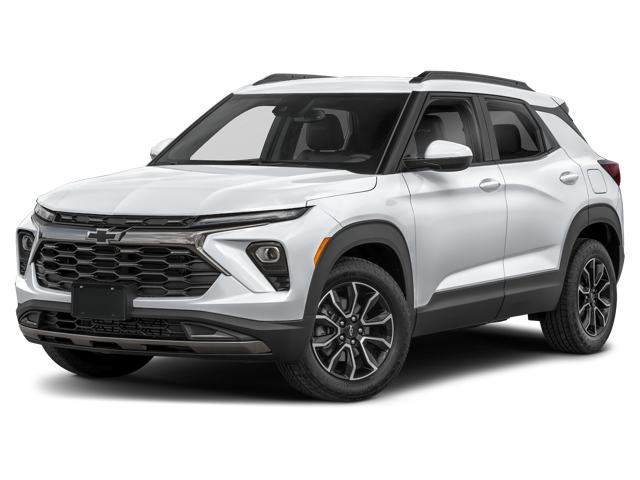

Activ
- ECOTEC® 1.3L Turbo engine
- 17-inch high-gloss Black machined-aluminum wheels
- High-gloss Black mesh grille with Titanium chrome accents
- Off-road suspension tuning
- Functional skid plate
- Available contrasting roof color
- ACTIV badging
- Heated, wrapped steering wheel
- Black bowtie emblems
- Black roof rails
- Evotex seating surfaces
- Dual-outlet exhaust with trapezoidal polished tips
- Heated front seats
- Power driver seat
RS
- ECOTEC® 1.3L Turbo engine
- 19-inch high-gloss Black machined-aluminum wheels
- High-gloss Black mesh grille with dark chrome grille bar
- Available contrasting roof color
- RS badging
- Red interior accents
- Heated, wrapped flat-bottom steering wheel
- Black bowtie emblems and nameplate badging
- Black roof rails
- Evotex seating surfaces
- Dual-outlet exhaust with round polished tips
- Heated front seats
- Power driver seat
LT
- 17-inch high-gloss Black aluminum wheels with machined face
- Keyless Open and Start
- Remote vehicle starter system
- Silver-painted roof rails
- Deep-tinted rear-window glass
- Heated body-color outside rearview mirrors
LS
- 11-inch diagonal color touch-screen and 8-inch diagonal Driver Information Center screen
- Wireless Apple CarPlay® and wireless Android AutoTM compatibility
- Chevy Safety Assist
- ECOTEC® 1.2L Turbo engine
- 17-inch Silver-painted aluminum wheels
- Bright chrome grille bar
- New LED headlamp design
- Fold-flat front passenger seat
- Keyless Start
- HD Rear Vision Camera
- Two front USB ports†(one type-A and one type-C)
- 4-speaker audio system
- Teen Driver technology
- Cruise control
- Sirius XM® Radio.
2024 CHEVROLET TRAILBLAZER SPECIFICATIONS (click to expand)
EPA-EST. MPG
1.2L FWD |
Not yet available |
1.3L FWD |
Not yet available |
1.3L AWD |
Not yet available |
FUEL TANK CAPACITY (approx.)
13.2 gal. / 50 liters |
ENGINE
ECOTEC 1.2L Turbo I-3 |
|
Bore & Stroke (in. / mm): |
2.95 x 3.54 / 75 x 90 |
Block Material: |
Aluminum |
Cylinder Head Material: |
Aluminum |
Valvetrain: |
DOHC |
Fuel Delivery: |
Direct injection |
Horsepower (hp / kW @ rpm): |
137 / 102 @ 5000 |
Torque (lb.-ft. / Nm @ rpm): |
162 / 219 @ 2500 |
ECOTEC 1.3L Turbo I-3 |
|
Bore & Stroke (in. / mm): |
3.11 x 3.58 / 79 x 91 |
Block Material: |
Aluminum |
Cylinder Head Material: |
Aluminum |
Valvetrain: |
DOHC |
Fuel Delivery: |
Direct injection |
Horsepower (hp / kW @ rpm): |
155 / 115 @ 5600 |
Torque (lb.-ft. / Nm @ rpm): |
174 / 236 @ 1600 |
TRANSMISSION & AXLE
Type: |
Continuously Variable Transmission |
Application: |
1.2L Turbo and 1.3L Turbo FWD |
Variator ratio spread |
7.0:1 |
Underdrive |
2.621: |
Overdrive |
0.374: |
Overall ratio spread |
7.0:1 |
Reverse |
0.67:1 |
Final Drive Ratio: |
5.45:1 |
Type: |
9-Speed Automatic Transmission |
Application: |
1.3L Turbo AWD |
Gear Ratios (:1) |
|
First |
4.69 |
Second |
3.31 |
Third |
3.01 |
Fourth |
2.45 |
Fifth |
1.92 |
Sixth |
1.45 |
Seventh |
1.00 |
Eighth |
0.75 |
Ninth |
0.62 |
Reverse |
2.96 |
Final Drive Ratio: |
3.17:1 |
CHASSIS & SUSPENSION
Front Suspension: |
MacPherson Strut |
Rear Suspension: |
Compound Crank; Watts link (AWD models) |
Steering Type: |
Electric power-assisted rack-and-pinion |
Turning Circle (ft. / m): |
36.8 / 11.2 |
Brake Type: |
Electric, four-wheel disc with Duralifeâ„¢ rotors; brake drying, ABS and brake life monitoring |
Brake Rotor Size (in. / mm): |
11.80 x 1.03 / 300 x 26 (front) 10.40 x 0.40 / 264 x 10 (rear) |
Wheel Size: |
17-in. aluminum (LS, LT and ACTIV) 18-in. aluminum (LT) 19-in. aluminum (RS) |
Tire Size: |
225/60R17 all-season (LS, LT) 225/60R17 sport terrain (ACTIV) 225/55R18 all-season (LT) 245/45R19 all-season (RS) |
EXTERIOR DIMENSIONS
Wheelbase (in. / mm): |
103.9 / 2639 |
Overall Length (in. / mm): |
173.5 / 4407 |
Overall Width (in. / mm): |
71.2 / 1808 |
Overall Height (in. / mm): |
65.2 / 1656 (LS, LT, ACTIV FWD) 65.3 / 1659 (RS FWD) 65.7 / 1669 (LS, LT, ACTIV, RS AWD) |
Track (in. / mm): |
61.2 / 1554 (front) 61.3 / 1557 (rear) |
INTERIOR DIMENSIONS
Headroom (in. / mm): |
40 / 1016 (front without sunroof) 38.3 / 973 (front with sunroof) 38.4 / 975 (rear without sunroof) 36.8 / 935 (rear with sunroof) |
Legroom (in. / mm): |
40.9 / 1039 (front) 39.4 / 1001 (rear) |
Shoulder Room (in. / mm): |
55.4 / 1408 (front) 53.8 / 1367 (rear) |
Hip Room (in. / mm): |
52.3 / 1328 (front) 50.39 / 1280 (rear) |
WEIGHTS, CAPACITIES & CARGO VOLUME
Base Curb Weight (lb. / kg): |
3029 / 1374 (1.2L FWD) 3095 / 1404 (1.3L FWD) 3252 / 1475 (1.3L AWD) |
EPA Passenger Volume (cu. ft. / L): |
98.2 / 2780 |
Max Cargo Volume1 (cu. ft. / L): |
25.3 / 716 (behind rear seat) 54.4 / 1540 (rear seat folded) |
Trailering Capacity2 (lb. / kg): |
1000 / 453 (requires accessory hitch) |
1Cargo and load capacity limited by weight and distribution.
2Before you buy a vehicle or use it for trailering, carefully review the Trailering section
of
the Owner’s Manual. The weight of passengers, cargo and options or accessories may reduce the amount you
can
tow.
SAFETY & DRIVER AWARENESS FEATURES
Airbags1: driver and front passenger frontal and knee, seat-mounted side-impact and roof rail-mounted head-curtain for all outboard seating positions. Includes Passenger Sensing System |
Standard Tire Pressure Monitoring System; tire pressure monitor includes tire fill alert (excludes spare tire, if equipped) |
Standard HD Vision Camera2 |
Standard Chevy Safety Assist package2. Content includes Automatic Emergency Braking, Front Pedestrian Braking, Lane Keep Assist with Lane Departure Warning, Following Distance Indicator, Forward Collision Alert and IntelliBeam auto high beams |
Driver Confidence and Cruise Package2 available on LS. Content includes cruise control, Lane Change Alert with Side Blind Zone Alert, Rear Cross Traffic Alert and Rear Park Assist |
Adaptive Cruise Control2 is available on LT, ACTIV and RS |
Driver Confidence Package 2 is available LT, ACTIV and RS. Content includes Lane Change Alert with Side Blind Zone Alert, Rear Cross Traffic Alert and Rear Park Assist |
1Always use seat belts and child restraints. Children are safer when
properly secured in a rear seat in the appropriate child restraint. See your vehicle Owner’s Manual for
more
information.
2Safety or driver-assistance features are no substitute for the driver’s responsibility to
operate the vehicle in a safe manner. Read the vehicle Owner’s Manual for more important feature
limitations
and information.
